Path: Radiocontrol | BRICK

Handheld keypad remotecontrol



The handheld keypad remote control suitable for TOWER and BRIDGE CRANES

 The BRICK transmitter is reliable, lightweight, extremely robust and easy to handle. The BRICK has an unrivaled working autonomy and will work for an entire working week without needing to be recharged.

With display data feedback readout too.

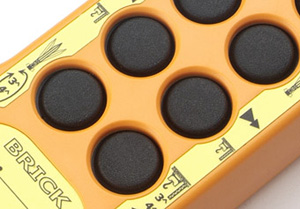

The keypad is made from a special elastic and resistance rubber adapted for use in the severest operating conditions, for example in low temperatures and contact with lime, cement, oil and solvents.

The key switch and emergency push button are protected by a special safety overhang to shield them from accidental knocks and falls. The BRICK casing is made from watertight IP65 so if it is accidentally dropped into water it will float; water will not enter the casing and damage the internal electronics. 		 dscf0061_1.jpg

Recharging takes place by contactless energy transferral.
The transmitter is simple placed onto the recharging unit, thus eliminating the need for electrical or metal terminals or connecting cables.


Also available with data-feedback display
The highly visible LED acts as signal transmittion confirmation as well as indicating the state of battery charge.

The ergonomic design of the tranmitter with its anti-slip grip bars make it easy to handle even with work gloves. The size of the buttons is an important feature allowing easy access without compromising the transmitter’s compactness.


Technical features:
Modulation: FM Manchester
Radio Frequency output power: 5 mW
Oscillator: Digital synthesizing PLL
Antenna: ¼ λ integrated
Power supply: 3.6 Vcc
Electricity consumption: 45 mA
Accumulators: Integrated 3×1,2V Ni-MH
Working autonomy: ~ 35 ore (20°C)
Low battery warning:  60 minutes
Watertight Casing Protection: : IP 65 NYLON
Grip size: 80 x 95 x 40 mm (LxWxH)
Dimensions 200×95×40 mm (L×W×H)
Weight: 465 g



To be used with:
ping Contact-less battery charger base
ping RxDIN  or  RxDIN-CL external receiver
ping Antennas either model  Active  or  LogP
