Path: Load Limiters | Application on mobile rope
b.jpg)
The load limiters of the series "M / G LCM" are installed in those lifting installations in which there is no stretch of rope fixed and where all the ropes perform sliding movements.
Maximun electrical charge: 250V – 15 A
Mechanical duration: 3.000.000 operation cycles
Isolation class (IP):load limiter IP 64 – safety micro-switch IP 67
Working temperature range: from -20°C to + 50°C
Length of connection cable: 4 meters
Bracket Arm
The use of these particular load limiters requires, for a better and more precise quality of work, the use in combination with a special arm provided with hinges for small transverse movements, such as those produced by us of the series "M / G LCM-B ".
Load limiters series "M/G LCM"
The load limiters of the series "M / G LCM" are installed in those lifting installations in which there is no stretch of rope fixed and where all the ropes perform sliding movements.
| Model | # of Thresholds | Field of calibration (kg) | Ø of Rope (mm) | Dimensions (mm) | Weight (kg) |
| M/G LCM-3 | 1 | 200-3.000 | 5-15 | 210 x 200 | 4,6 |
| M/G LCM-3 S2 | 2 | 200-3.000 | 5-15 | 210 x 200 | 4,8 |
| M/G LCM-5 | 1 | 3.001-5.000 | 12-20 | 300 x 190 | 8,5 |
| M/G LCM-5 S2 | 2 | 3.001-5.000 | 12-20 | 300 x 190 | 8,7 |
| M/G LCM-10 | 1 | 5.001-10.000 | 18-30 | 400 x 270 | 12,8 |
| M/G LCM-10 S2 | 2 | 5.001-10.000 | 18-30 | 400 x 270 | 13 |
Technical Specifications
Maximun electrical charge: 250V – 15 A
Mechanical duration: 3.000.000 operation cycles
Isolation class (IP):load limiter IP 64 – safety micro-switch IP 67
Working temperature range: from -20°C to + 50°C
Length of connection cable: 4 meters

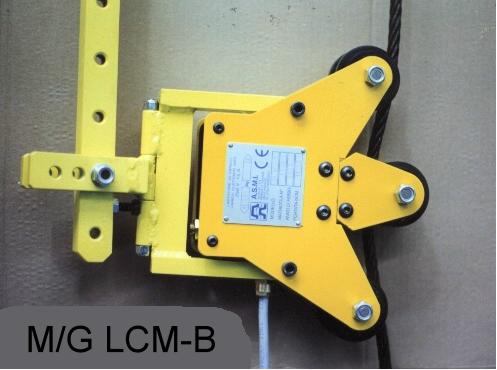

Bracket Arm
The use of these particular load limiters requires, for a better and more precise quality of work, the use in combination with a special arm provided with hinges for small transverse movements, such as those produced by us of the series "M / G LCM-B ".
| Arm model | Application with... |
| M/G LCM-B3 | ...load limiters series M/G LCM-3 |
| M/G LCM-B5 | ...load limiters series M/G LCM-5 |
| M/G LCM-B10 | ...load limiters seris M/G LCM-10 |
